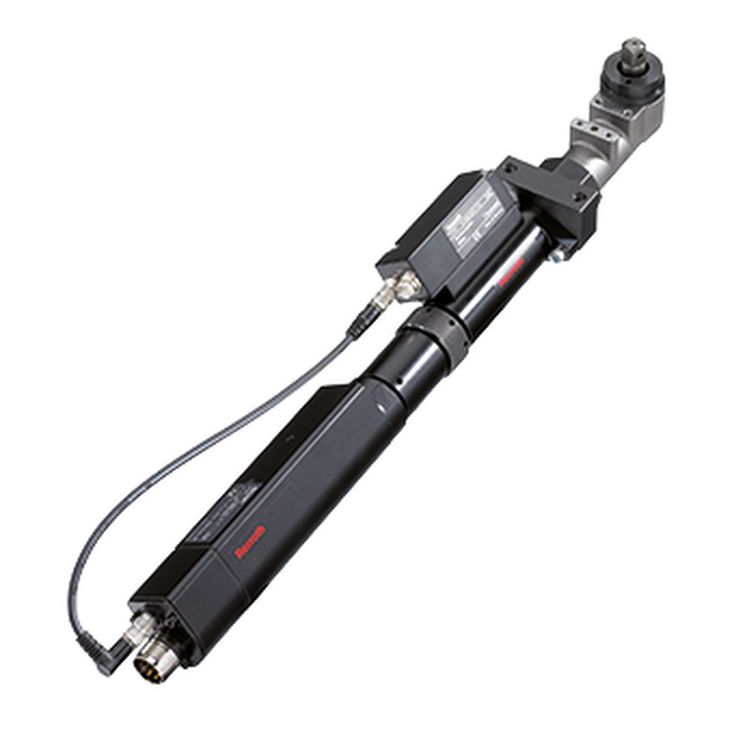

Bosch Rexroth Size 3 stationary (fixtured) tools in Angle configuration!
Working range: 5.4-90 Nm
Max. output drive speed: 705 rpm
Angled GK – Size 3
Additional information
| EC Motor | 0 608701016-EC MOTOR EC302 SZ2 |
|---|---|

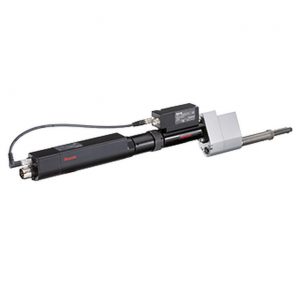

| Offset Output Drive | 0 608810041 – ANGLE HEAD 2W011 SZ2 1/4"SQ |
| Planetary Gearbox | 0 608720038 – PLANETARY GEAR TRAIN 2GE26 SZ2 , 0 608720043 – PLANETARY GEAR TRAIN 2GE19 SZ2 |
| Transverse Gearbox | 0 608 810 054 – TRANSVERSE GEARBOX 2ULG SZ2 |
| Optional: Measurement transducer | NONE, 0 608820110 Measuring transducer Size 2, Nominal Torque: 6 Nm, 0 608820111 Measuring transducer Size 2, Nominal Torque: 12 Nm |
| Optional Adapter | NONE, 0608810024 – ADAPTER 2A SZ2 GE OUTPUT, 0 608810020 – REDUNDANT ADAPTER 2AR SZ2 |
| Optional Transducer Cable | 0 608830171 – Measuring transducer cable BG2/3 ML036 , 0 608830174 – Measuring transducer cable redundant MLR033 BG2/3/4 |
