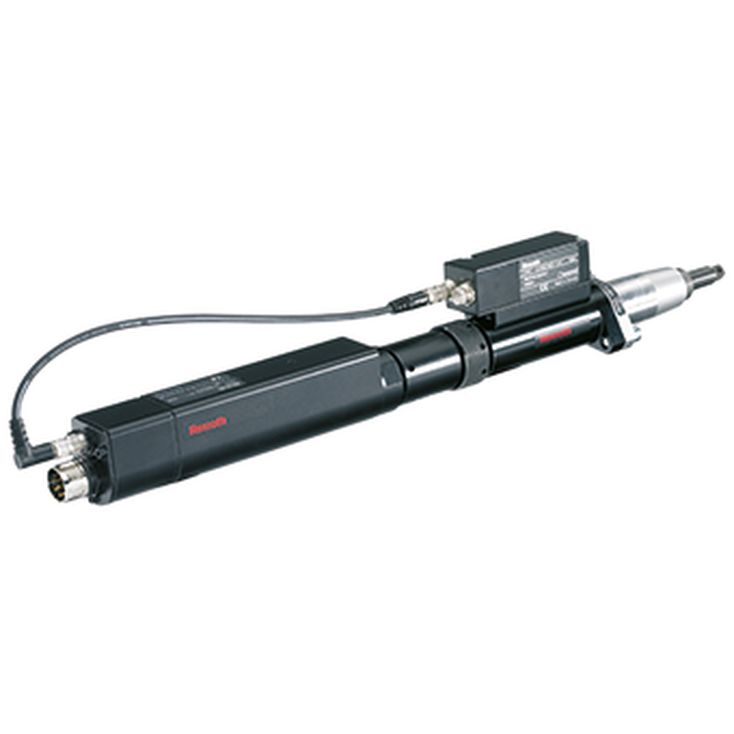

Bosch Rexroth Size 3 stationary (fixtured) tools in Straight output with telescoping spindles at various compression lengths.
Working range 1.7-56 Nm
Max. output drive speed: 740 rpm
Straight GK Size 3
Additional information
| EC Motor | 0 608701016 EC302 SZ2 |
|---|---|
| Offset Output Drive | 0608800607 – Sliding spindle r=1, Size 2, 20mm spring, 1/4" square, 0 608800078 – Sliding spindle r=1, Size 2, 20mm spring, 1/4" quick change, 0 608800085 – STRAIGHT OUTPUT 2GB82 F73 Newton force SZ2 1/4"QC |
| Planetary Gearbox | 0 608720038 2GE26 , 0 608720043 2GE19 |
| Tightening Spindle | 0.6 – 5,1000, 0.6 – 5, 780, 1.2 – 7,1000, 1.2 – 7,780, 1.2 – 10,1000, 1.2 – 10,780 |
| Transverse Gearbox | 0 608 810 054 – TRANSVERSE GEARBOX 2ULG SZ2 |
| Optional: Measurement transducer | NONE, 0 608820110 Measuring transducer Size 2, Nominal Torque: 6 Nm, 0 608820111 Measuring transducer Size 2, Nominal Torque: 12 Nm, NONE |
| Optional Feed Output Drive | NONE, 1/4" square, M6 outer thread |
| Optional Adapter | NONE, 0608810024 – ADAPTER 2A SZ2 GE OUTPUT, 0 608810020 – REDUNDANT ADAPTER 2AR SZ2 |
| Optional Transducer Cable | 0 608830171 – Measuring transducer cable BG2/3 , 0 608830174 – Measuring transducer cable redundant BG2/3/4 |
| Size |
